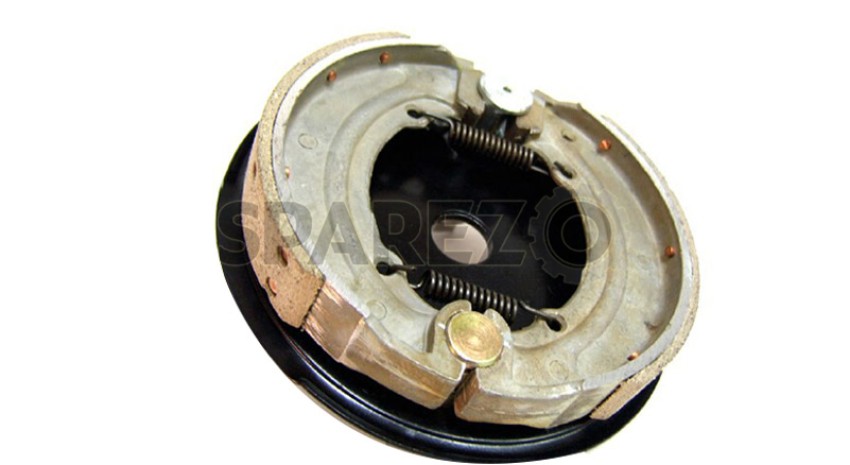

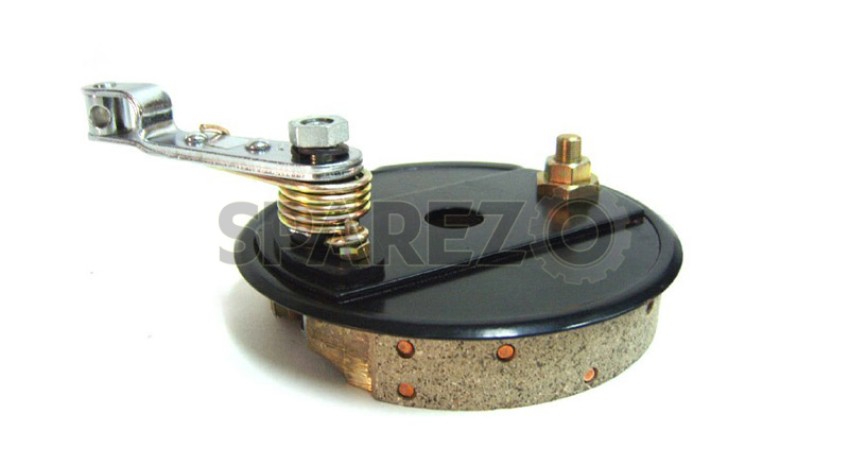

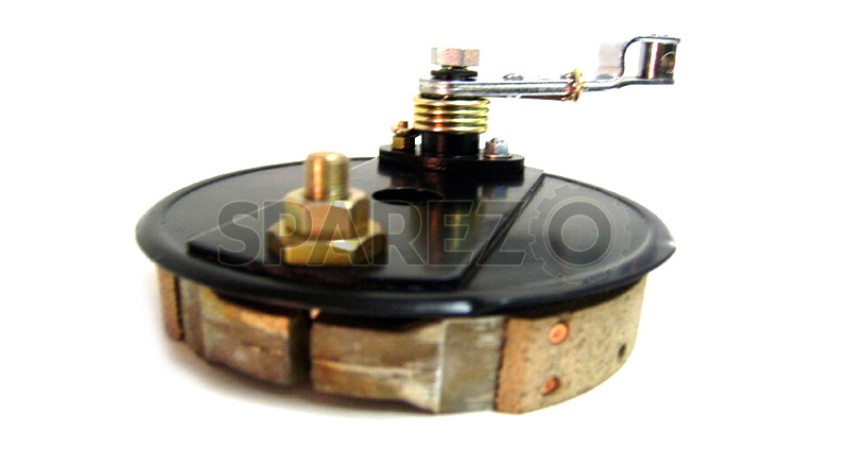

Available with us in a wide variety of specifications, the offered range of Royal Enfield Complete 6" Brake Assembly has been a great replacement for old spares. For the convenience of our customers, we give a wide range of spares in this Assembly such as
Part No. Description Units
Part No. 801042 COVER PLATE BLACK 1
Part No. 110283 PIN ANCHOR 1
Part No. 153654 OPERATING CAM 1
Part No. 110366 WASHER 1
Part No. 140380 NUT ANCHOR PIN 1
Part No. 801225 CAM BUSH (Old Part No.801040) 1
Part No. 801039 BRAKE LEVER RETURN SPRING (Old Part No. 110308) 1
Part No. 110287 LEVER OPERATING CAM 1
Part No. 140376 WASHER 2
Part No. 140384 NUT 2
Part No. 110282 PIVOT PIN, REAR BRAKE SHOE 1
Part No. 110286 PIN, CAM BUSH, SHORT 1
Part No. 140369 NUT, 1/4 X 26TPI, THIN 2
Part No. 124313 SPRING, REAR BRAKE SHOE 2
Part No. 144570 BRAKE SHOE ASSEMBLY 6" 2
Following are some special features of the product:

can be fitted to all the models of 350cc and 500cc Royal Enfield Motorcycles
Installable without help of any engineer
Sturdy shape
Durable quality
Made as per standard size
Quality tested

Note: The offered product range has been tested for quality compatibility. The Brake Link Rod and Adjuster are not the Part of Complete Rear Brake Assembly. Manufactured as per highest quality standards, all its specifications of size and dimensions are as per industry standards. All the products are as per Royal Enfield specifications and we do not stand responsible if you are applying these Royal Enfield spare parts to other vehicles. Some modifications might be required for the same.
